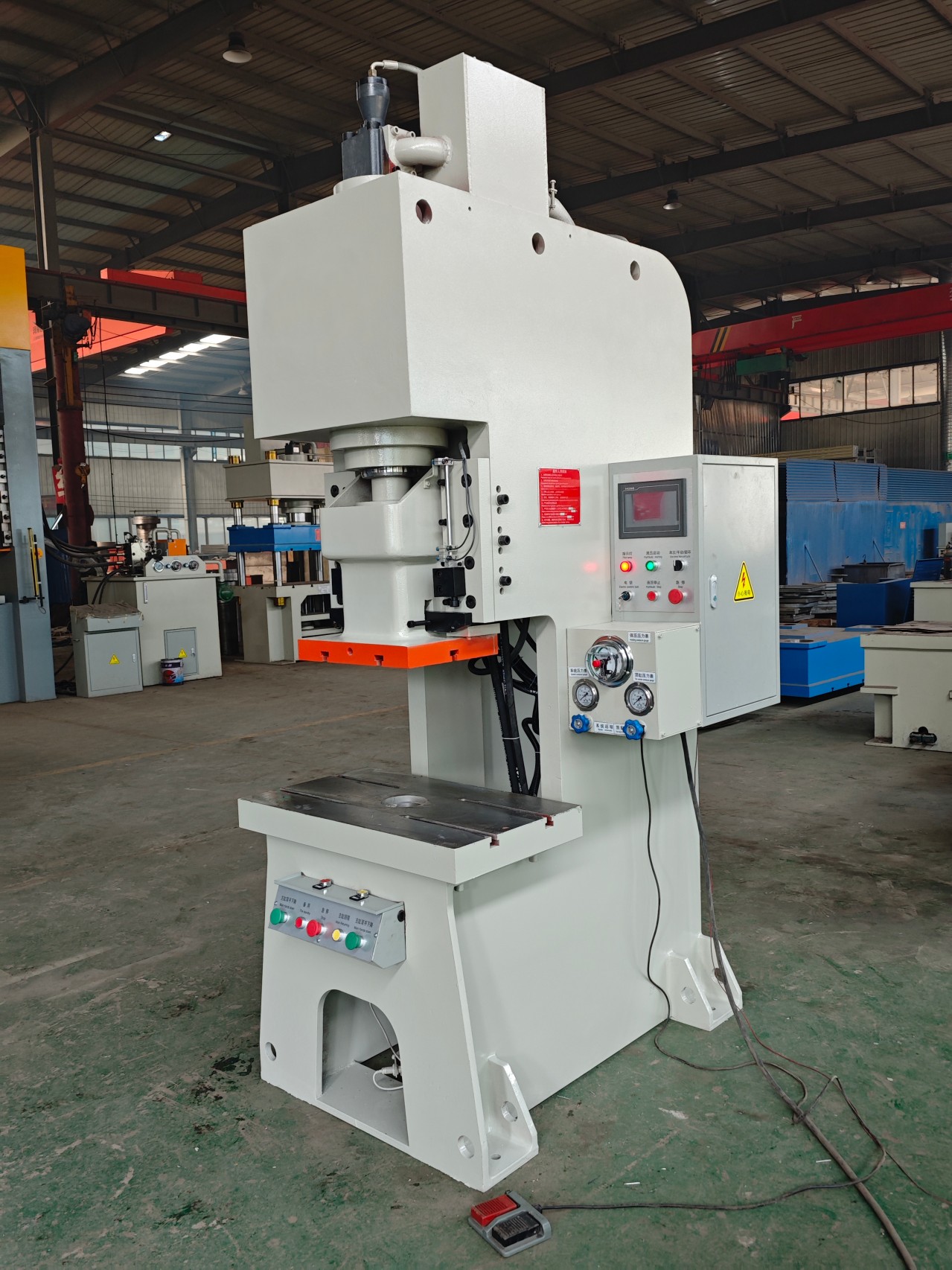

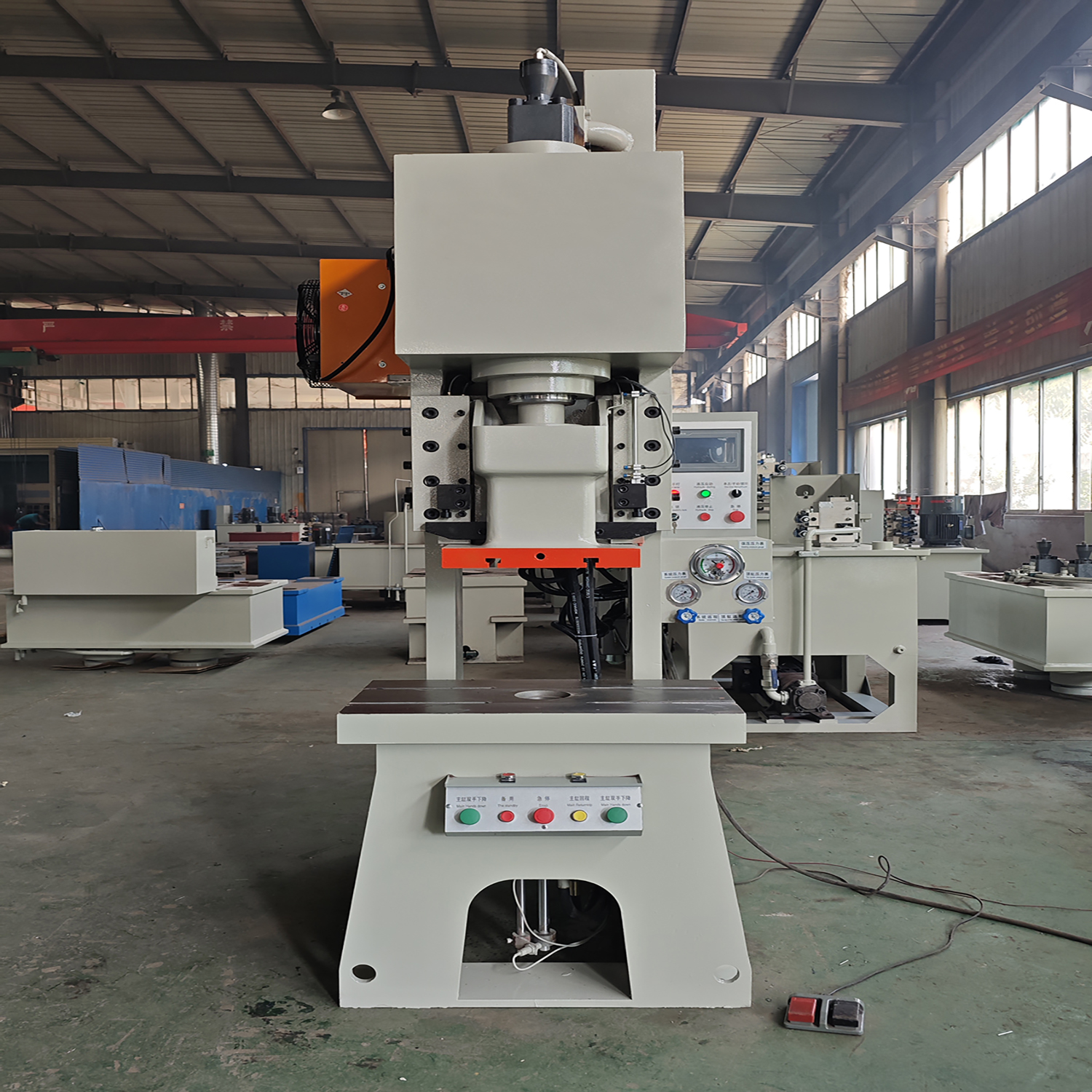

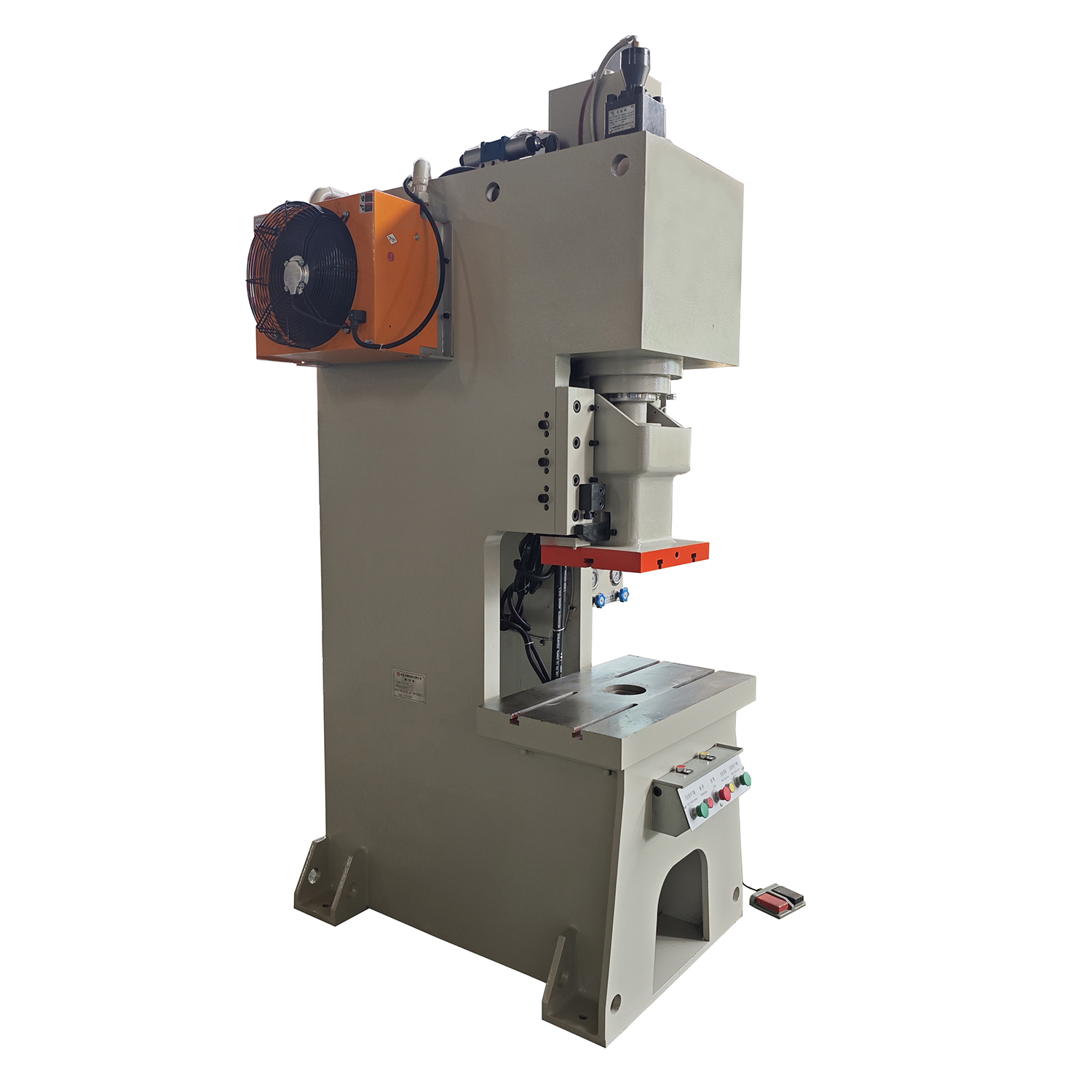

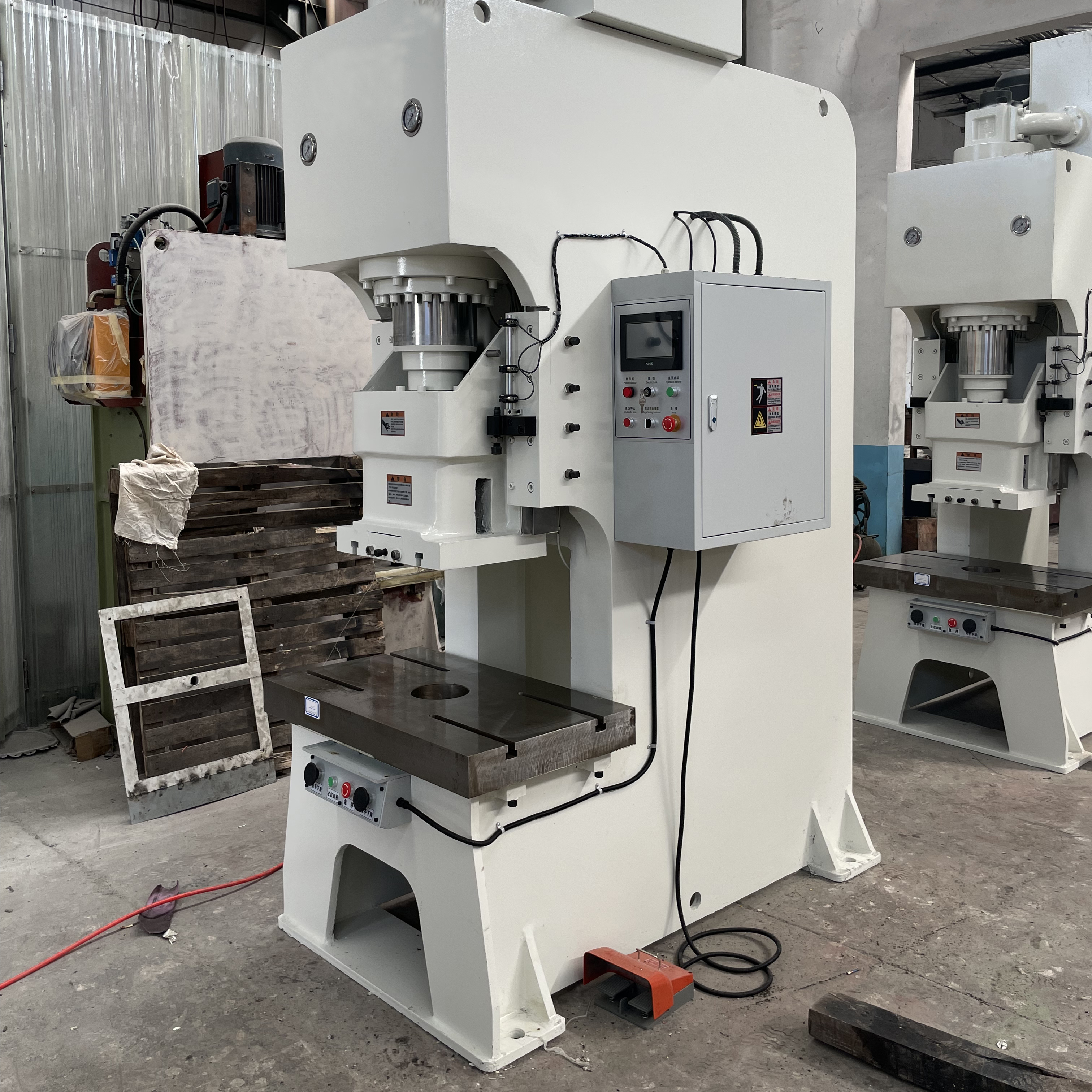

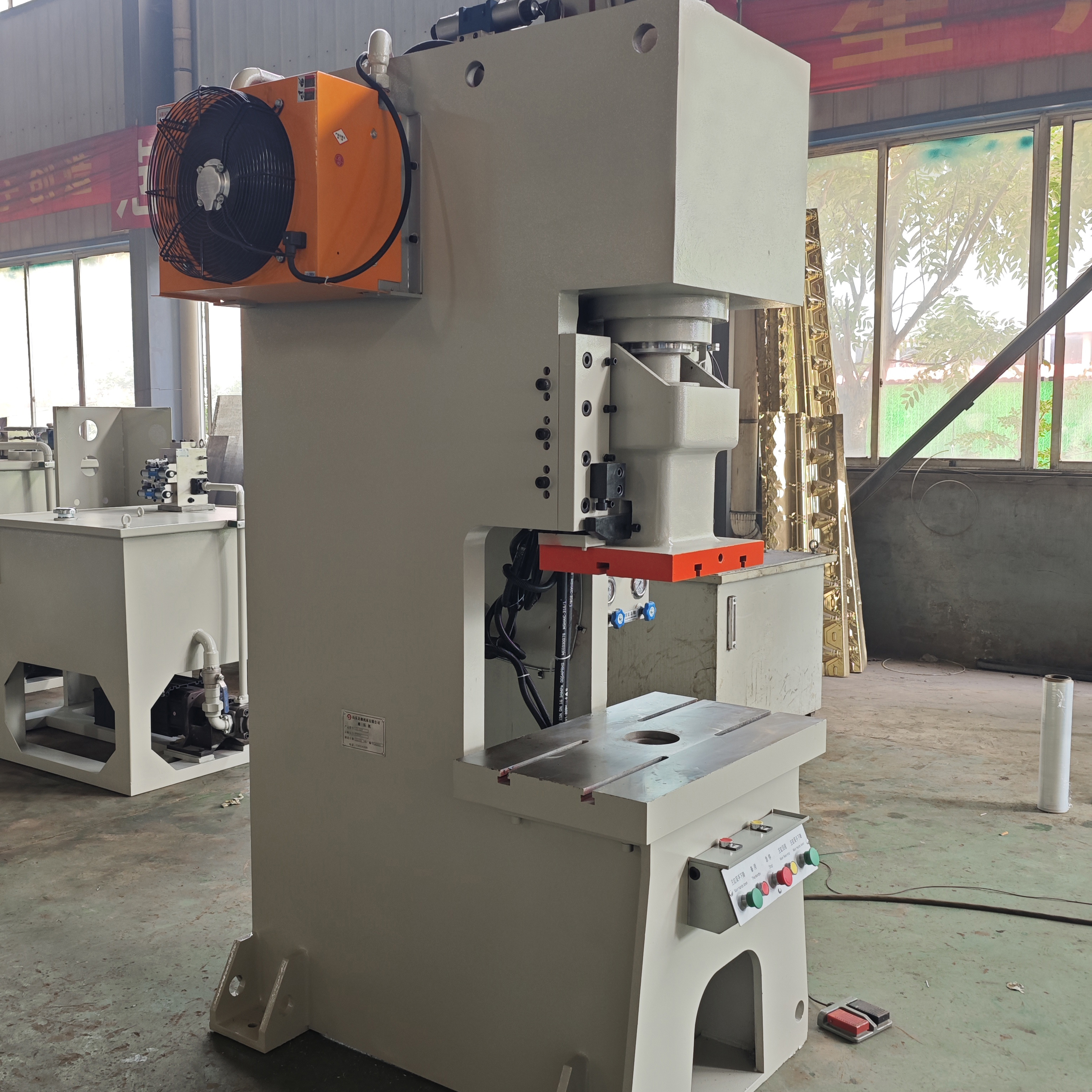

Equipment display

Our hydraulic press machine is designed for efficient and precise metal forming operations. Powered by a stable hydraulic system and built with a heavy-duty welded steel frame, it provides consistent pressure output, smooth operation, and excellent durability for long-term industrial use.

Compared with mechanical presses, hydraulic presses offer better control over pressure and stroke, making them ideal for complex forming processes and customized production requirements. The machine supports a wide range of applications including punching, bending, forming, deep drawing, and assembly operations.





Core Advantages

Rigid Frame Structure

The machine frame is manufactured from high-strength steel plates with precision welding and stress-relief treatment, ensuring excellent rigidity, accuracy, and resistance to deformation.

Stable Hydraulic System

Equipped with high-quality hydraulic components, the system delivers smooth pressure output, low noise, and reliable long-term performance even under continuous operation.

Precise Control

Pressure, stroke, and holding time can be accurately controlled. Optional PLC and touch screen systems allow easy operation and high repeatability.

Flexible Customization

Tonnage, stroke, table size, mold installation, safety devices, and control systems can all be customized to match specific production requirements.





Slide/Ram: The core actuator of the punch press, supporting the upper die and moving up and down; it is the source of force.

Upper Die: Mounted at the lower end of the slide, it mates with the lower die and directly contacts the material; it is one of the stamping tools.

Die Shoe: Supports the lower die and is fixed to the press bed (frame); it is another part of the stamping tool.

Die: The combination of the upper and lower dies; it is the decisive tool for shaping a specific workpiece.

Power Transmission Mechanism: Such as a crankshaft, connecting rod (mechanical), or hydraulic cylinder (hydraulic), it converts the motor power into the linear motion of the slide.

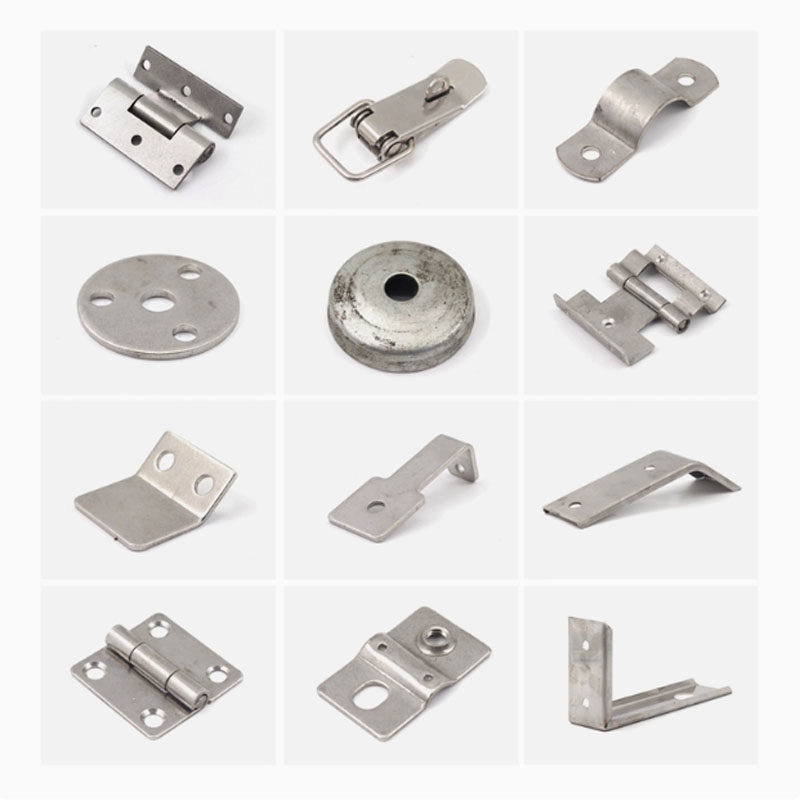

Applications

Our hydraulic press machines are widely used in:

Sheet metal punching and forming

Bending and straightening

Deep drawing processes

Powder compacting

Automotive and hardware parts manufacturing

Electrical and industrial components production

Suitable materials include carbon steel, stainless steel, aluminum, copper, and other metal sheets.

Operation & Safety

Two-hand operation system

Emergency stop button

Overload protection

Optional safety light curtain

CE standard electrical configuration (optional)

Safety and ease of operation are fully considered in the machine design.

Manufacturing & Quality Control

Each hydraulic press machine is manufactured under strict quality control procedures:

Precision machining of key components

Frame welding and stress relief

Hydraulic pressure testing

Electrical system inspection

Trial operation before delivery

This ensures stable performance and consistent quality for every machine.

After-Sales Service

Warranty: 12–24 months

Online technical support

Installation and operation manuals

Video guidance for setup and maintenance

Long-term spare parts supply

We provide reliable after-sales service to support customers worldwide.

FAQ

Q1: Can the hydraulic press be customized?
A: Yes, tonnage, stroke, table size and control system can all be customized.

Q2: What materials can it process?
A: Carbon steel, stainless steel, aluminum, copper and other metal sheets.

Q3: What is the delivery time?
A: Usually 25–40 working days after deposit.

Q4: Do you provide installation support?
A: Yes, we provide manuals, videos and online guidance.

Parameters/Model   unit Y21-25T Y21-45T Y21-63T Y21-80T Y21-100T
Nominal force   KN 250 400 630 800 1000
Maximum hydraulic system   Mpa 21 21 21 21 21
Maximum pressure slide stroke   mm 130 130 160 160 180
Number of slide strokes   Times/
min
40-60 40-60 30-50 30-50 30-50
Maximum closed height   mm 180 220/260 300/220 320/350 320/350
Stroke adjustment   mm Stepless
adjustment
Stepless
adjustment
Stepless
adjustment
Stepless
adjustment
Stepless
adjustment
Throat depth   mm 210 250 300 310 320
Height of workbench from the ground   mm 740 780 800 820 870
Column spacing   mm 320 360 420 500 550
Slider Bottom size Left and right mm 300 360 400 420 480
Front and back mm 220 250 320 340 360
Mold hole mm 40 50 50 60 60
Workbench pad size Left and right mm 600 710 900 1000 1100
Front and back mm 400 440 500 550 600
Aperture   130 150 180 180 220
Thickness mm 70 80 90 100 110
Motor power   KW 4 5.5 5.5 7.5 7.5
Oil pump     10 16 25 40 40
filling valve       25 32 40 50/63
